DriveZ62/SiC
Features
A.LOW VCE(sat)
B.Low Switching Loss
C.Ultrasonic Welding of Power Terminals
D.Standard Housing

Applications
A.Motor Drives
B.Wind Turbines
C.High Power Converters

Product Description


PackageProductProduct StatusVDSS(V)VGSS(V)ID(A)Configurationtypical value @Tj=25℃
RDS(on)(mΩ)VSD(V)Eon(mJ)Eoff(mJ)

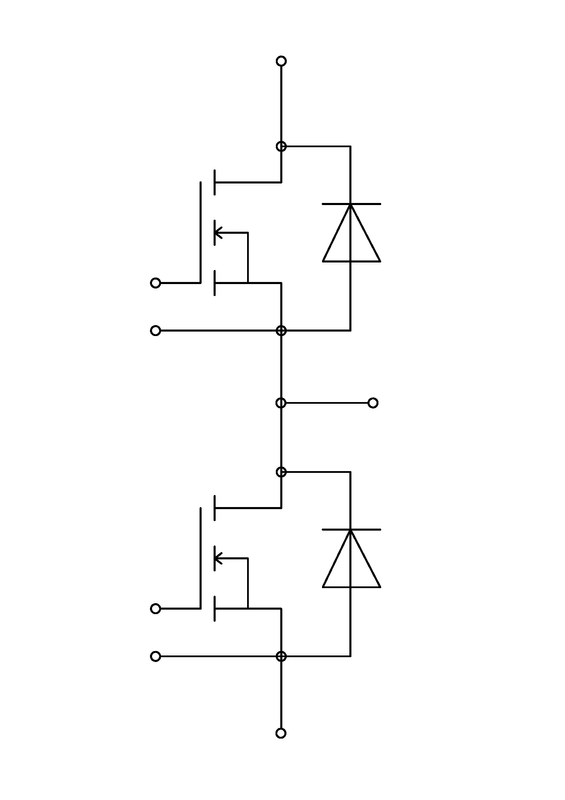

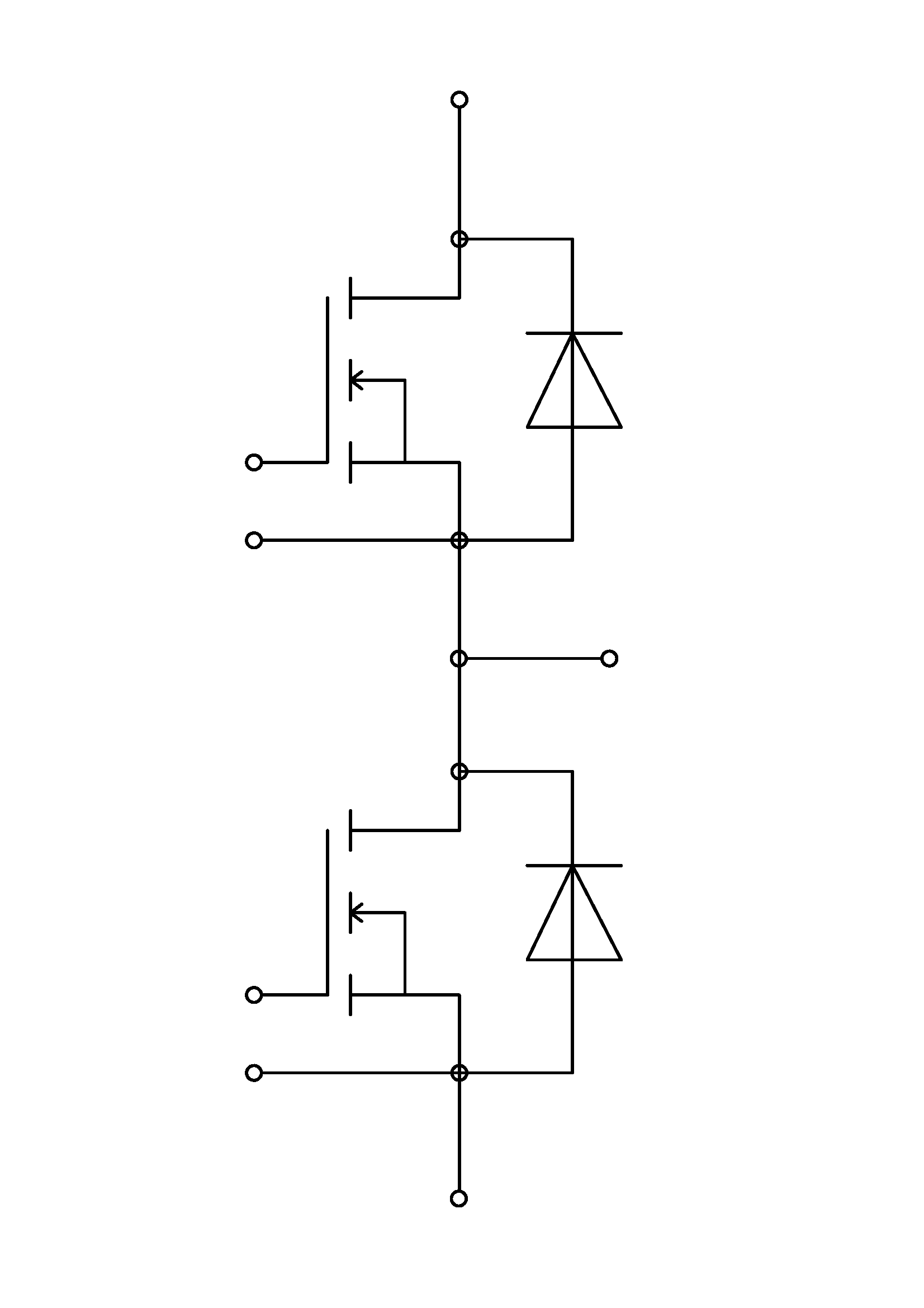

DriveZ62/sic2B120E120T1PDeveloping1200+25/-10120Half Bridge101.60T.B.DT.B.D
2B300E120T1PDeveloping1200+25/-10300Half Bridge41.60T.B.DT.B.D
2B120E120T2PDeveloping1200+20/-4120Half Bridge152.00T.B.DT.B.D
2B300E120T2PDeveloping1200+20/-4300Half Bridge62.00T.B.DT.B.D
