DriveZ3/SiC
Features
A.Field Stop Trench Gate IGBT
B.LOW VCE(sat)
C.Low Switching LOSS
D.Direct Cooled Pinfin Base Plate

Applications
A.Motor Drives
B.Electrical Vehicles Applications
C.High Power Converters

Product Description

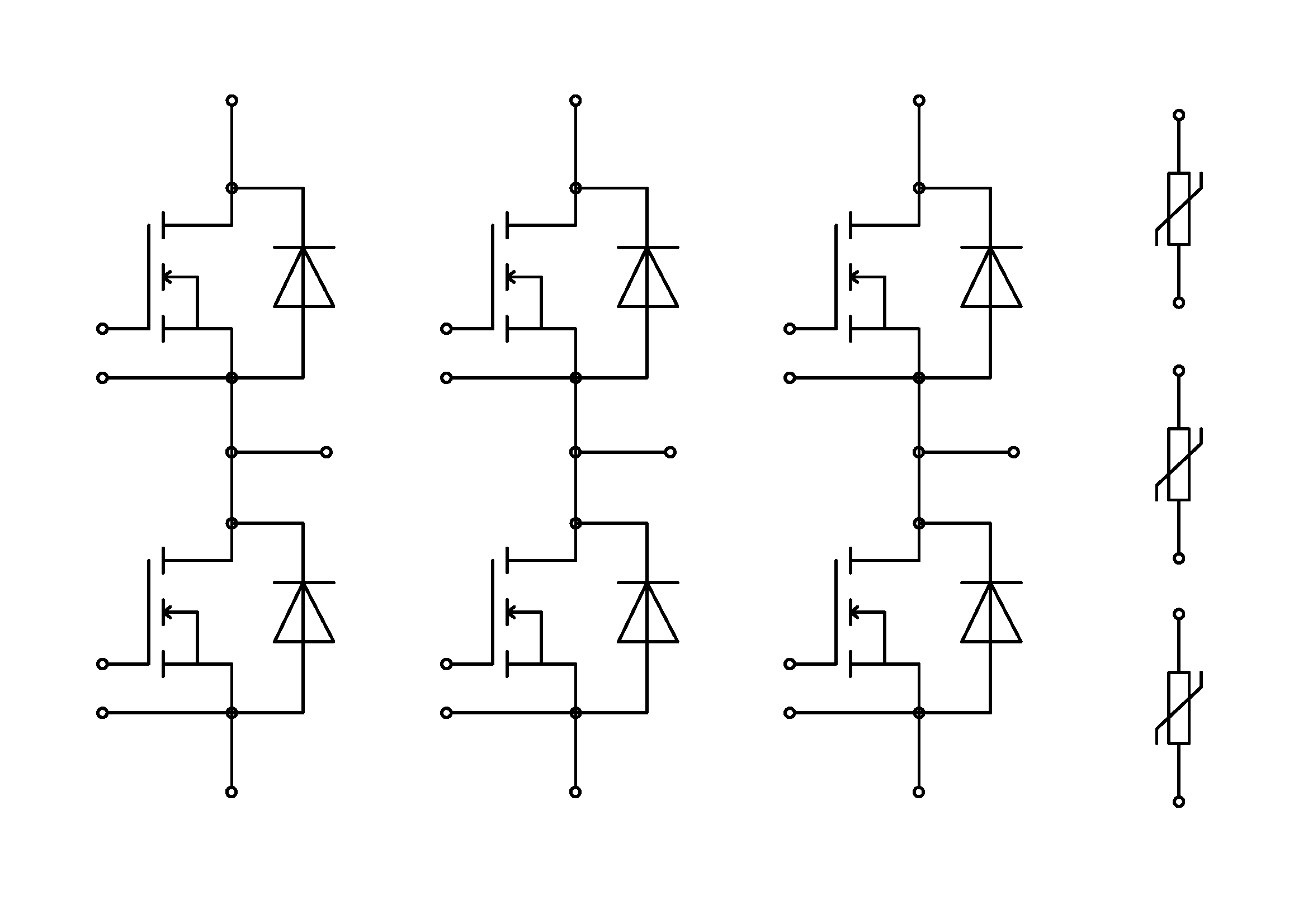

PackageProductProduct StatusVDSS(V)VGSS(V)ID(A)Configurationtypical value @Tj=25℃
RDS(on)(mΩ)VSD(V)Eon(mJ)Eoff(mJ)
DriveZ3/SiC6H120E120T1PDeveloping1200+25/-10120six-pack101.60T.B.DT.B.D
6H300E120T1PDeveloping1200+25/-10300six-pack51.60T.B.DT.B.D
6H120E120T2PDeveloping1200+20/-4120six-pack152.00T.B.DT.B.D
6H300E120T2PDeveloping1200+20/-4300six-pack62.00T.B.DT.B.D
