LightEV
‹
›
‹
›
LightEV
Features
A.Low Switching Losses
B.Low VCE(sat)
C.High Short Circuit Capability(10us)
Applications
A.Motor Drivese
B.Servo Drives
C.UPS(Uninterruptible Power Supplies)
Product Description
Package
Product
Vces(V)
Ic(A)
VCE(sat)(V)
Configuration
typical value @Tj=25℃
VF(V)
Eon(mJ)
Eoff(mJ)
LightEV
TLV100M07S1P
650
100
1.55

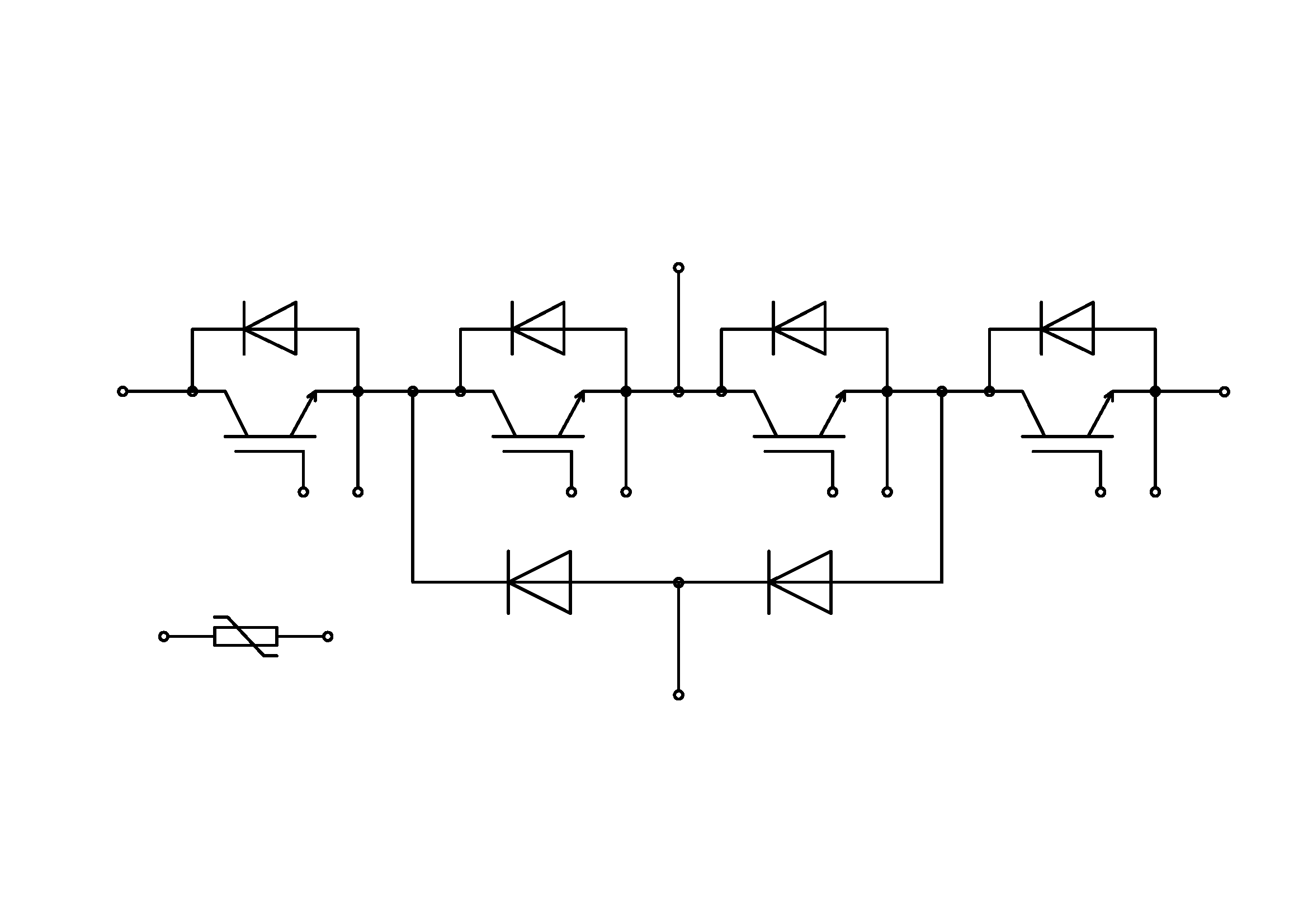

3-Level
1.60
1.85
4.70
TLV150M07S1P
650
150
1.55
3-Level
1.60
2.50
5.40
LightEV
PMV25ZL120S1P
1200
25
1.85

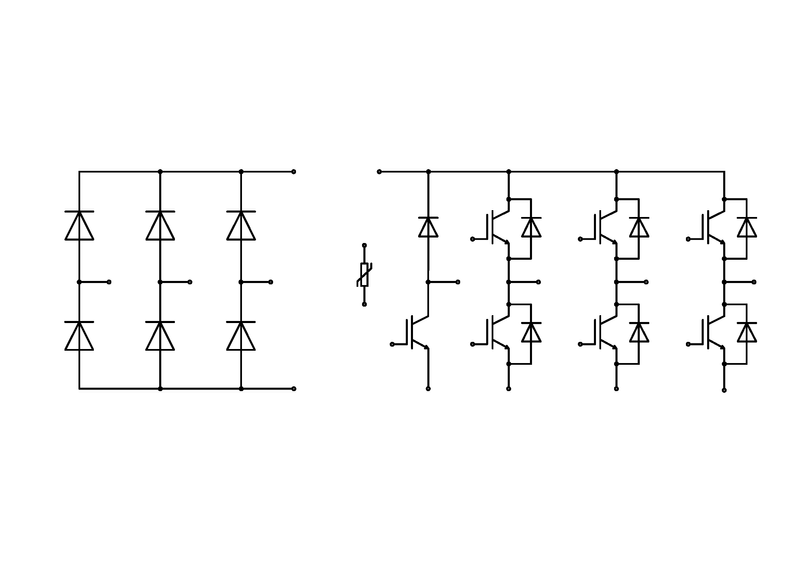

PIM
1.75
1.62
1.44
PMV35ZL120S1P
1200
35
1.85

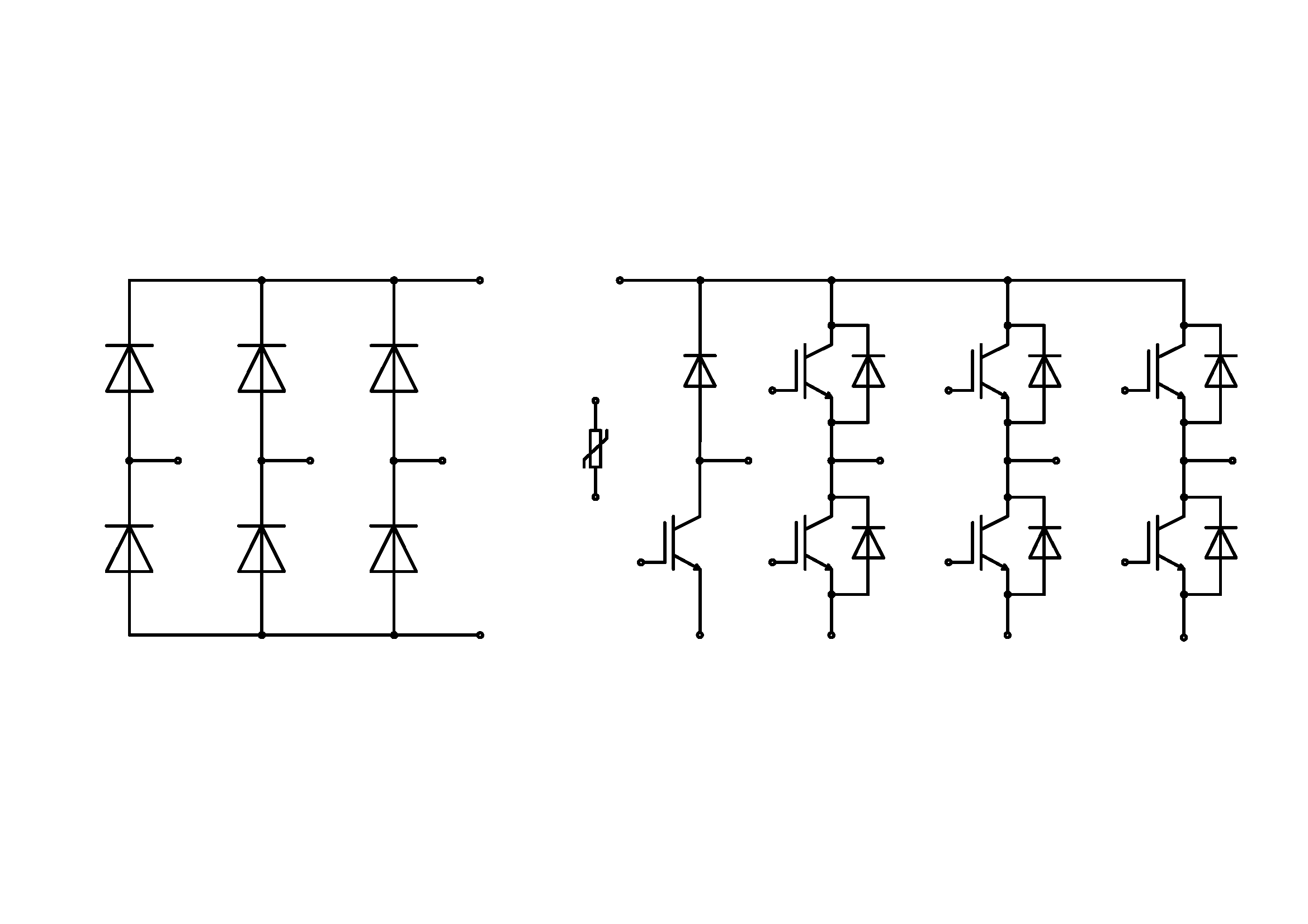

PIM
1.65
1.90
2.00
