LightEU
‹
›
‹
›
LightEU
Features
A.Low Switching Losses
B.Low VCE(sat)
C.High Short Circuit Capability(10us)
Applications
A.Motor Drivese
B.Servo Drives
C.UPS(Uninterruptible Power Supplies)
Product Description
Package
Product
Vces(V)
Ic(A)
VCE(sat)(V)

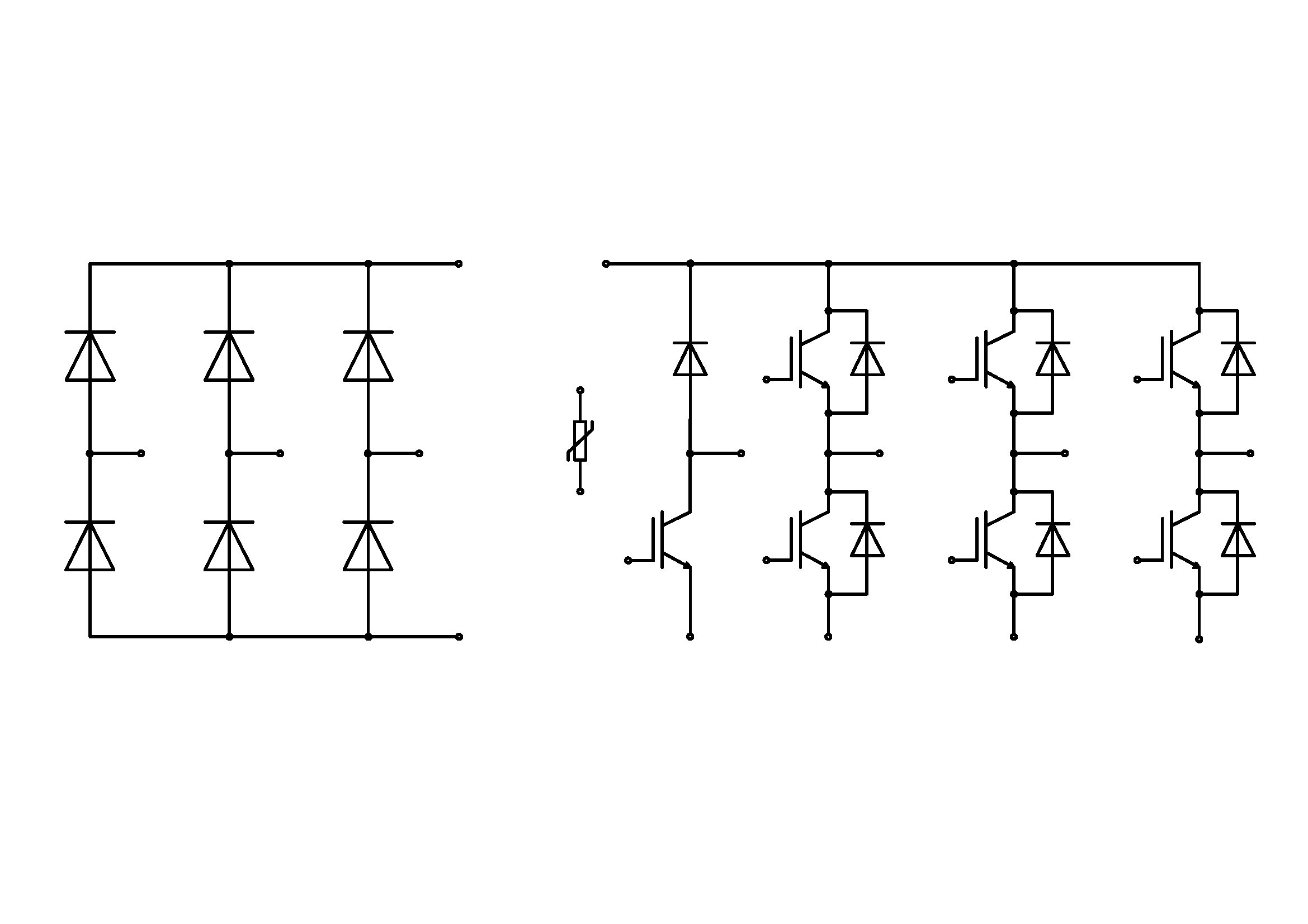

Configuration
typical value @Tj=25℃
VF(V)
Eon(mJ)
Eoff(mJ)
LightEU
PMU10ZL120S1P
1200
10
1.70
PIM
1.75
0.98
0.48
PMU15ZL120S1P
1200
15
1.80
PIM
2.00
1.42
0.78
