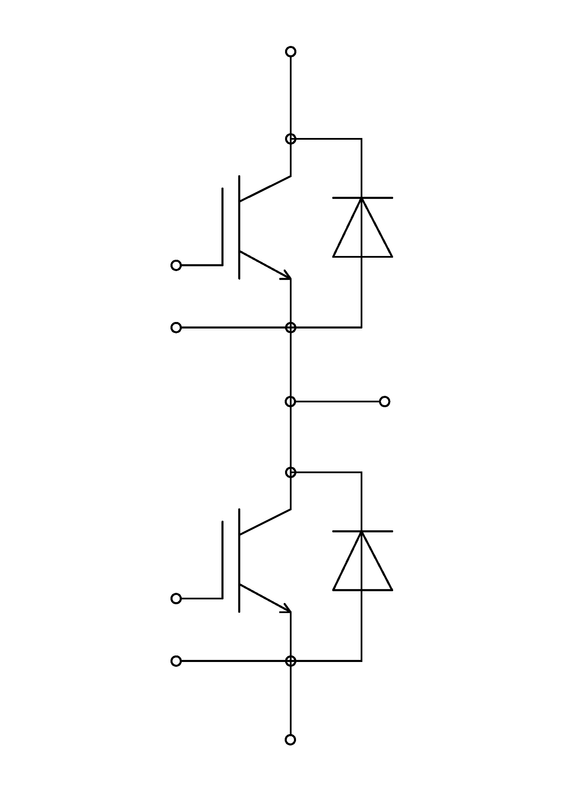

DriveZ34

Features
A.Low Swithing Losses
B.Low VCE(sat)
C.Low Stray Inductance

Applications
A.Welding Machines
B.Induction Heating
C.UPS

Product Description

Package	Product	Vces(V)	Ic(A)	VCE(sat)(V)	Configuration	typical value @Tj=25℃
Package	Product	Vces(V)	Ic(A)	VCE(sat)(V)	Configuration	VF(V)	Eon(mJ)	Eoff(mJ)

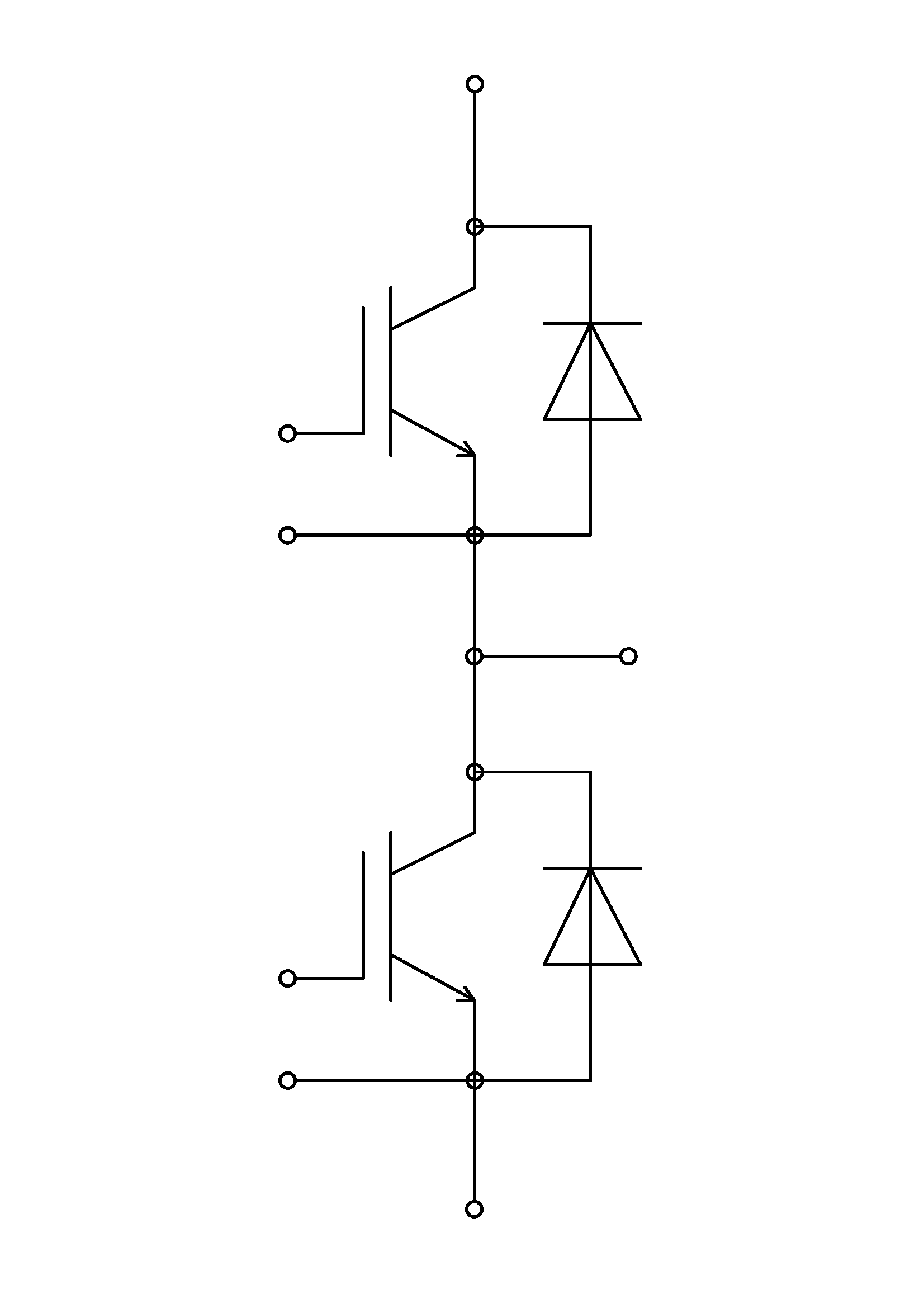

DriveZ34	2A75M07S1P	650	75	1.60	Half Bridge	1.60	0.71	2.31
	2A100M07S1P	650	100	1.60	Half Bridge	1.60	0.78	2.52
	2A150M07S1P	650	150	1.50	Half Bridge	1.60	1.4	4.2
	2A200M07S1P	650	200	1.50	Half Bridge	1.60	1.7	6.1
	2A50ZF120S1P	1200	50	3.10	Half Bridge	2.10	3.9	1.3
	2A75ZF120S1P	1200	75	3.10	Half Bridge	1.90	7.1	1.9
	2A100ZF120S1P	1200	100	3.10	Half Bridge	1.90	10.9	2.9
	2A75ZL120S1P	1200	75	1.95	Half Bridge	2.40	7.1	5.7
	2A100ZL120S1P	1200	100	1.95	Half Bridge	1.80	3.8	7.1
	2A150ZL120S1P	1200	150	1.95	Half Bridge	1.70	15.1	7.0

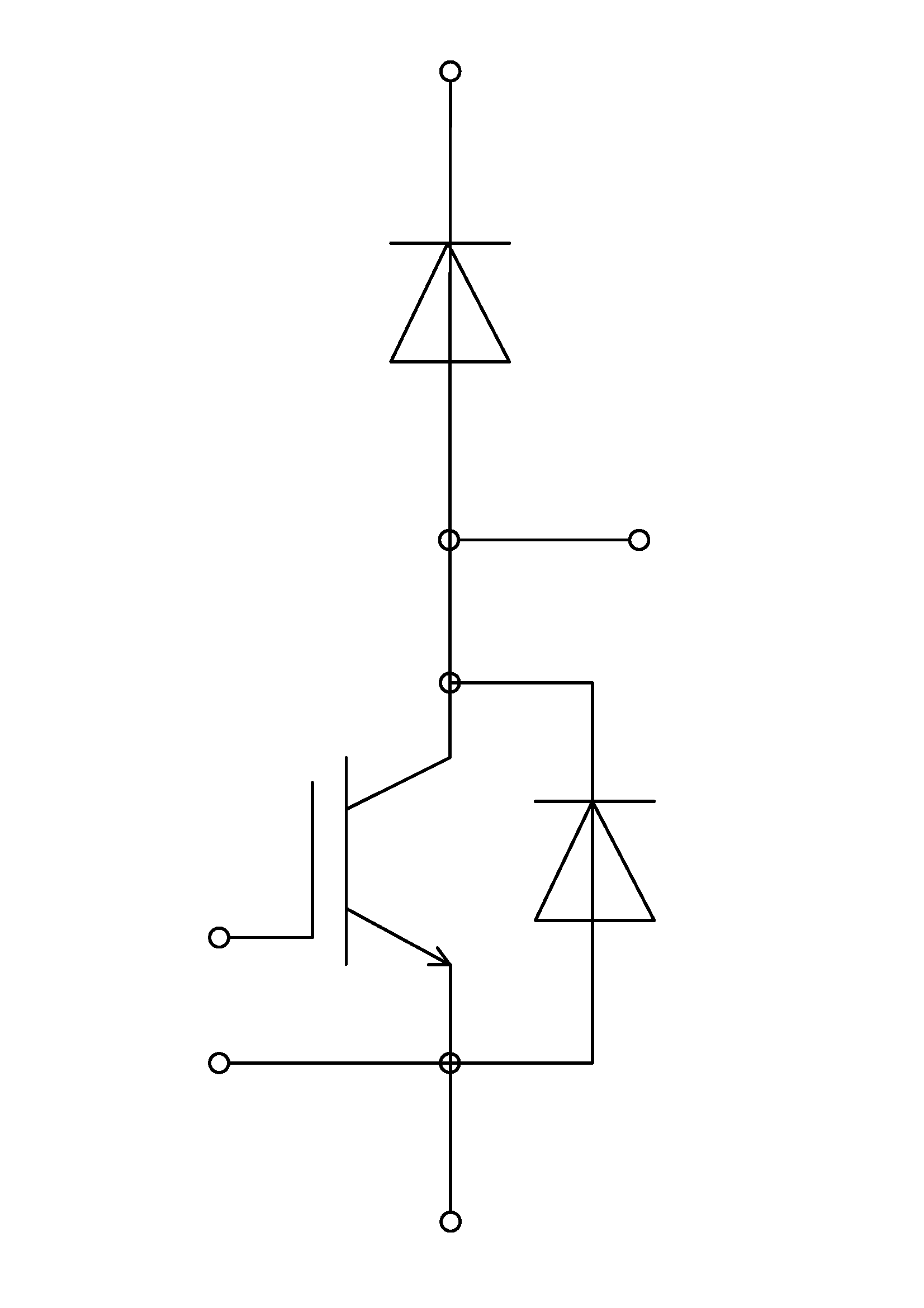

DriveZ34	CHA75ZL120S1P	1200	75	1.95	Chopper High	2.40	7.1	5.7
	CHA100ZL120S1P	1200	100	1.95	Chopper High	1.80	3.8	7.1
	CHA150ZL120S1P	1200	150	1.95	Chopper High	1.70	15.1	7.0

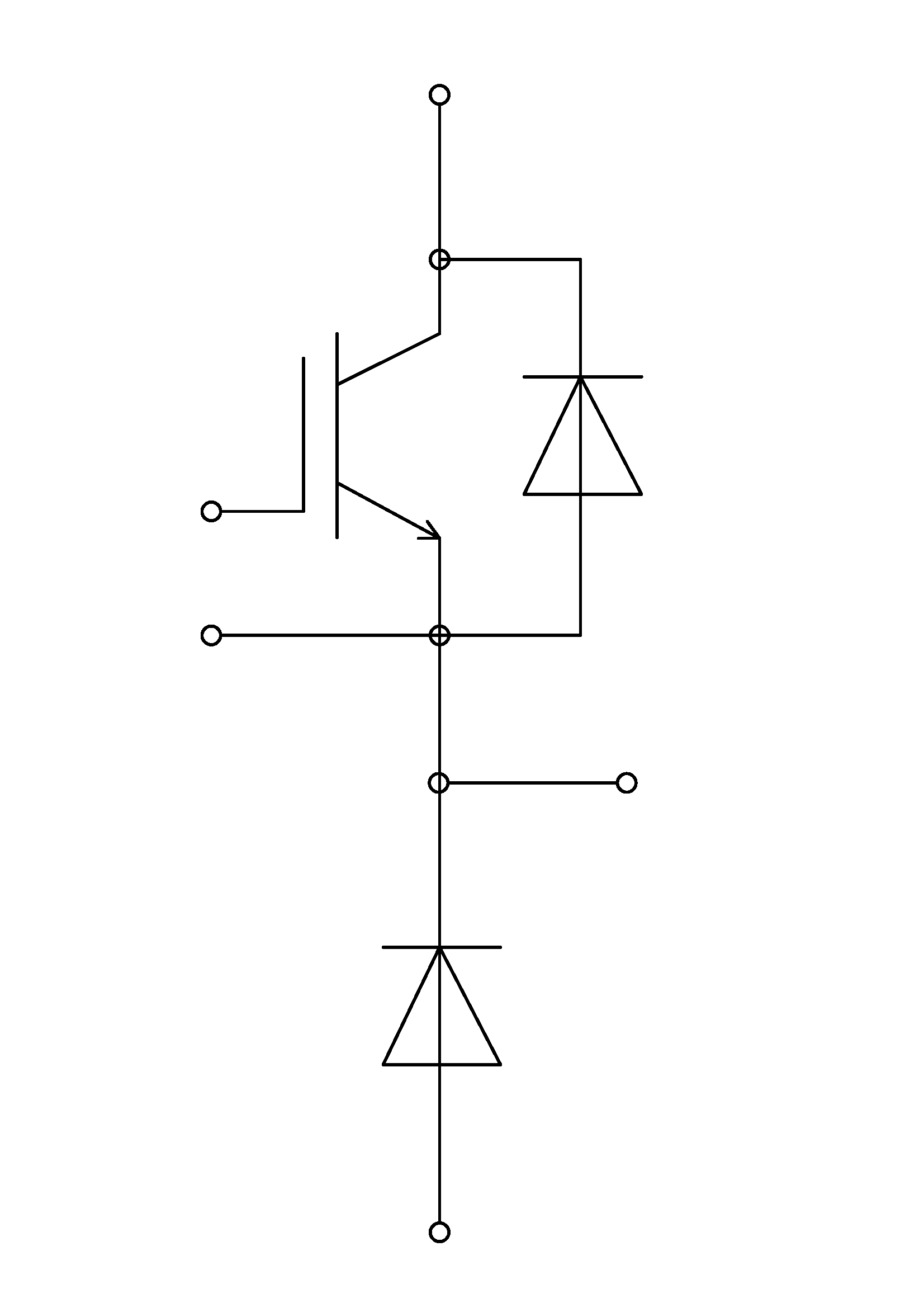

DriveZ34	CLA75ZL120S1P	1200	75	1.95	Chopper Low	2.40	7.1	5.7
	CLA100ZL120S1P	1200	100	1.95	Chopper Low	1.80	3.8	7.1
	CLA150ZL120S1P	1200	150	1.95	Chopper Low	1.70	15.1	7.0
DriveZ34	2A80B07H1P	650	80	1.45	Half Bridge	1.45	059	1.28


