DriveP3
Features
A.Low VCE(sat)
B.Low Inductance Case
C.High Short Circuit Capability (10us)

Applications
A. Motor Drivese
B.Servo Drives
C.UPS System

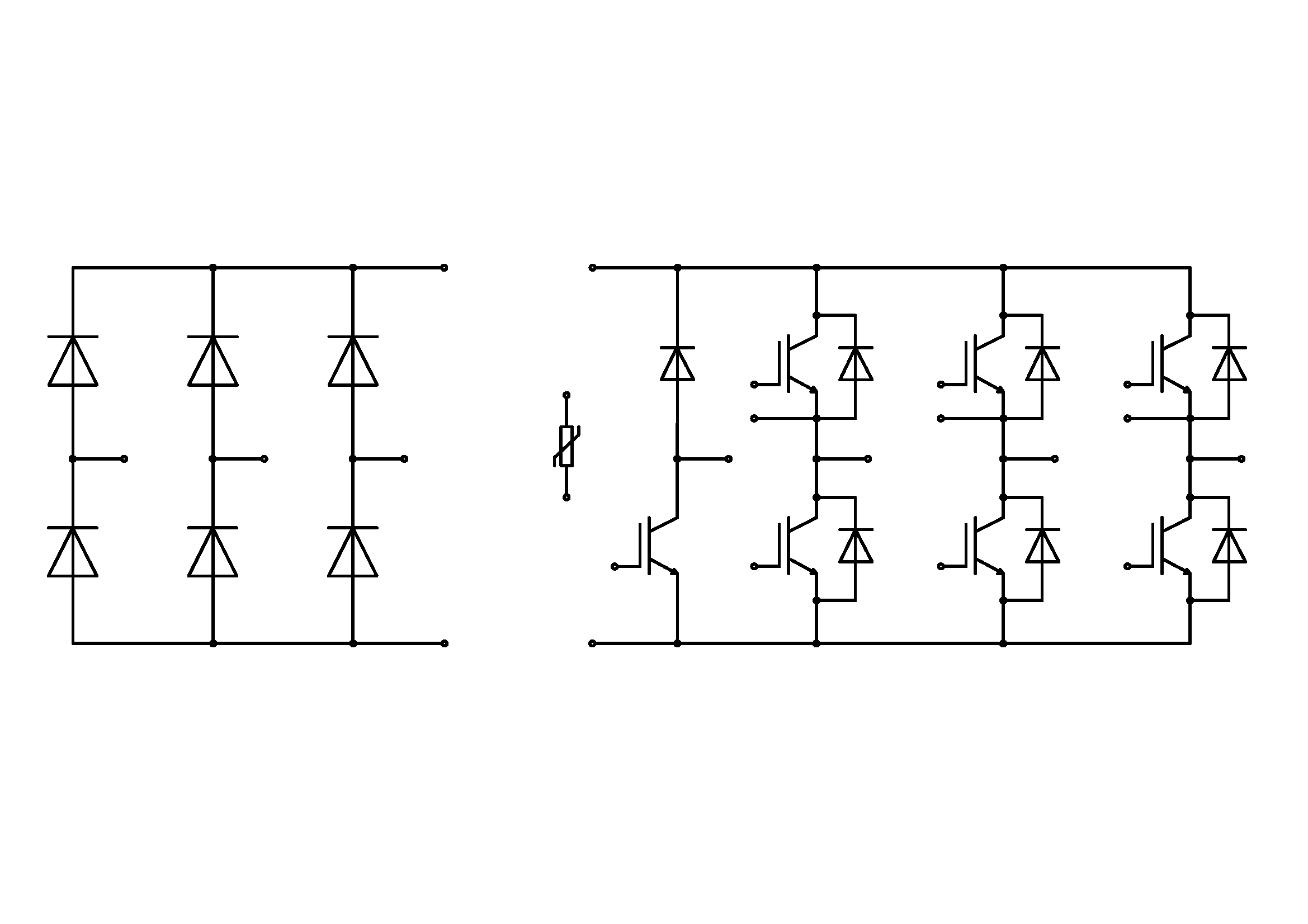

Product Description


PackageProductVces(V)Ic(A)VCE(sat)(V)Configurationtypical value @Tj=25℃
VF(V)Eon(mJ)Eoff(mJ)
DriveP3PMD50M120S1P_T31200501.60PIM1.903.22.6
PMD75M120S1P_T31200751.60PIM1.903.15.0
PMD75M120S1P_T41200751.60PIM1.903.15.0
PMD100M120S1P_T412001001.70PIM1.903.85.3
PMD150M120S1P_T412001501.70PIM1.905.29.1
PMD100TA120S1P_T412001001.90PIM2.004.94.6
PMD150TA120S1P_T412001501.90PIM2.006.57.0
