DriveP2
Features
A.Low VCE(sat)
B.Low swiching losse
C.High Short Circuit Capability(10us)

Applications
A.Moter Drives
B.Servo Drives

Product Description

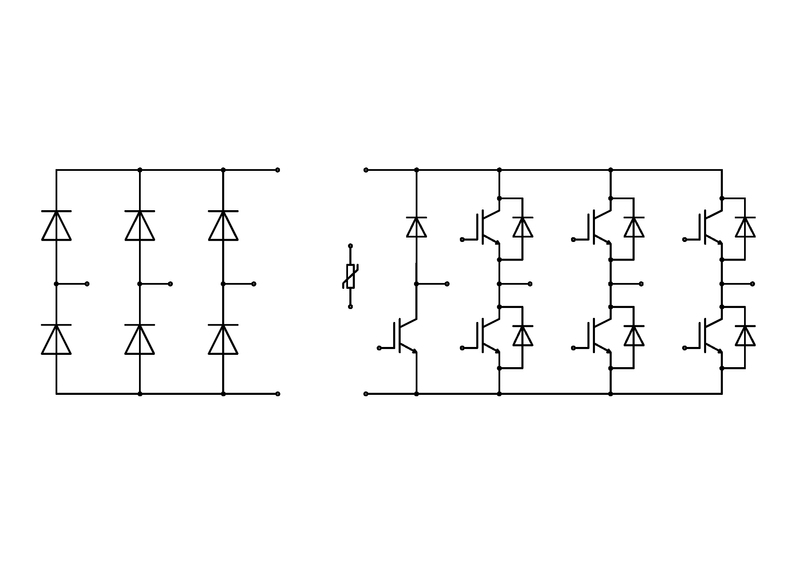

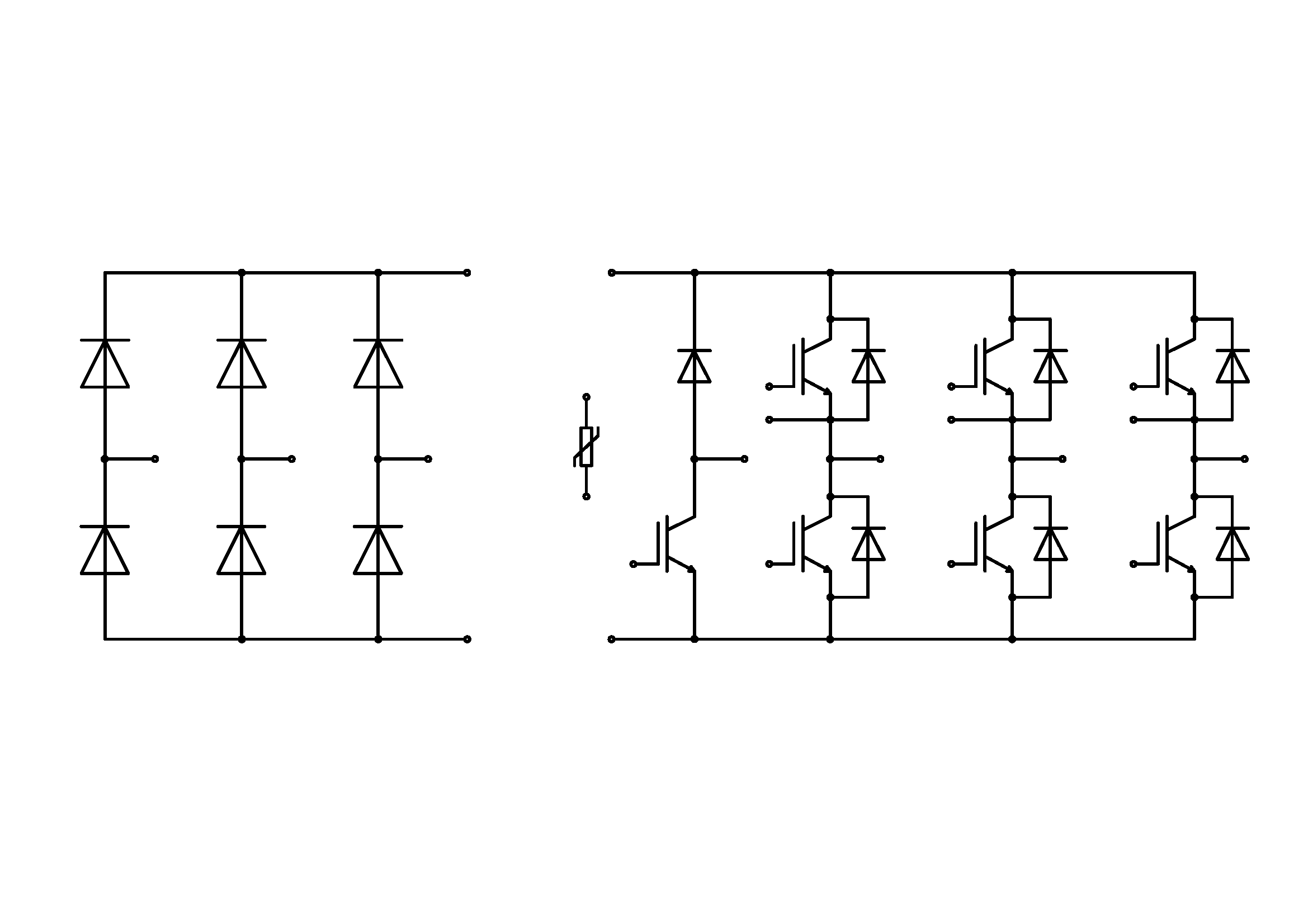

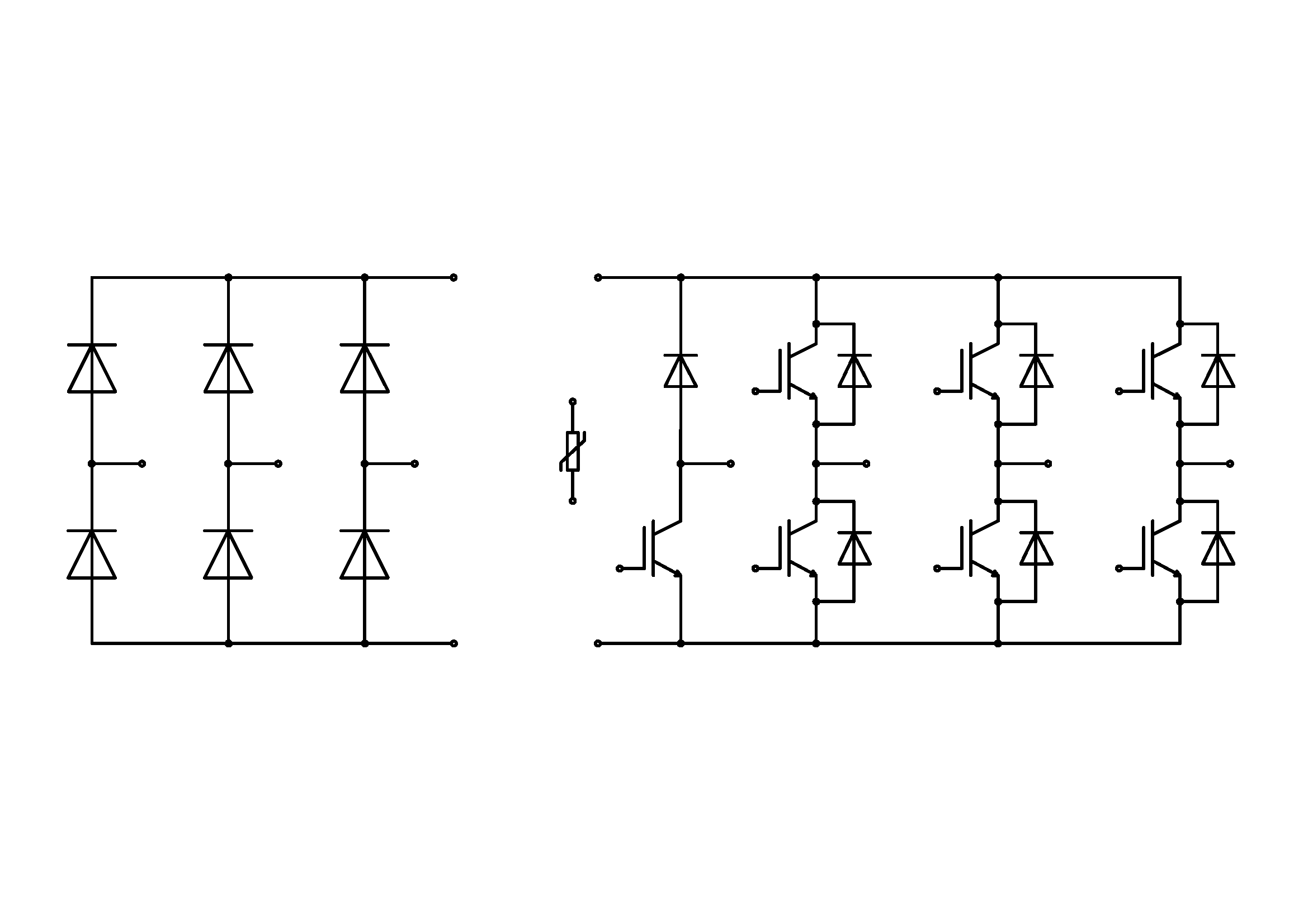

PackageProuductVces(V)Ic(A)VCE(sat)(V)Configurationtypical value @Tj=25℃
VF(V)Eon(mJ)Eoff(mJ)
DriveP2PMC25TA120S1P_T31200251.75PIM1.903.51.9
PMC35TA120S1P_T31200351.75PIM1.903.92.2
PMC40TA120S1P_T31200401.75PIM1.904.12.3
DriveP2PMC35TA120S1P_T41200351.75PIM1.903.92.2
PMC40TA120S1P_T41200401.75PIM1.904.12.3
PMC50M120S1P_T41200501.70PIM1.704.24.9
