EV IGBT Module
>

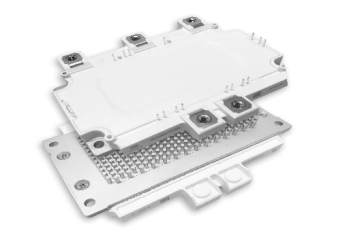

DriveZ1W
‹
›
‹
›
DriveZ1W
Features
A.LOW VCE(sat)
B.Low Switching Losses
C.Ultrasonic Welding of Power Terminals
Applications
A. Motor Drives
B. Automotive Applications
C. Commercial Agriculture Vehicles
Product Description
Package
Product
Vces(V)
Ic(A)
VCE(sat)(V)

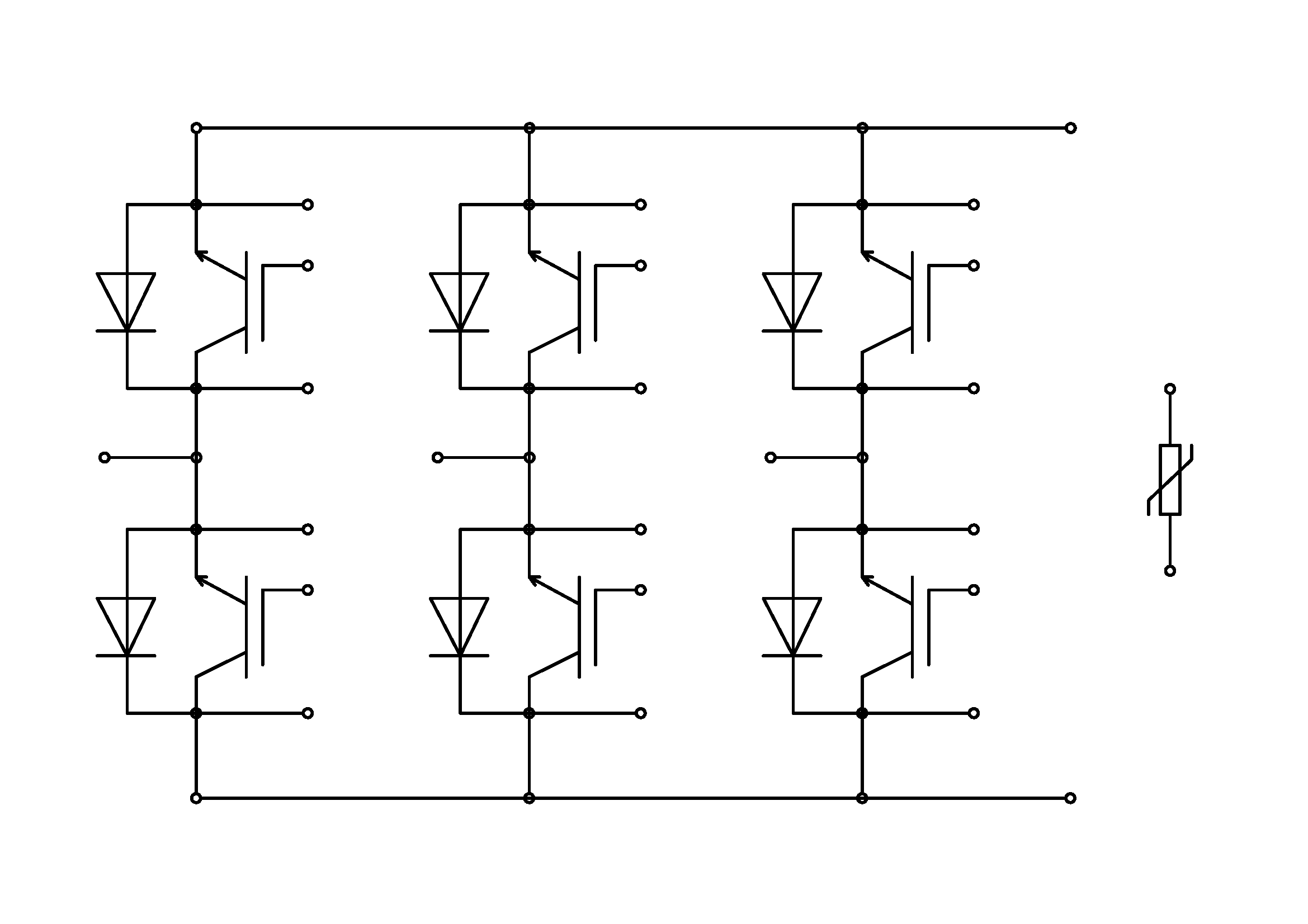

Configuration
typical value @Tj=25℃
VF(V)
Eon(mJ)
Eoff(mJ)
DriveZ1W
6K300M07A1P
650
300
1.55
six-pack
1.60
1.9
24.7
6K400M07A1P
650
400
1.55
six-pack
1.60
2.4
29.3
6K550M07A1P
650
550
1.55
six-pack
1.60
2.8
32.5
6K300M08A1P
750
300
1.40
six-pack
1.75
1.9
25.8
6K400M08A1P
750
400
1.40
six-pack
1.75
2.6
29.7
6K550M08A1P
750
550
1.40
six-pack
1.75
3.2
36.7
6K200M120A1P
1200
200
1.70
six-pack
1.80
4.2
15.8
6K300M120A1P
1200
300
1.70
six-pack
1.80
5.8
23.5
DriveZ1W
6K300M07A1P2
650
300
1.55
six-pack
1.60
1.9
24.7
6K400M07A1P2
650
400
1.55
six-pack
1.60
2.4
29.3
6K550M07A1P2
650
550
1.55
six-pack
1.60
2.8
32.5
6K660M07A1P2
650
660
1.55
six-pack
1.60
3.3
36.4
6K300M08A1P2
750
300
1.40
six-pack
1.75
1.9
25.8
6K400M08A1P2
750
400
1.40
six-pack
1.75
2.6
29.7
6K550M08A1P2
750
550
1.40
six-pack
1.75
3.2
36.7
6K660M08A1P2
750
660
1.40
six-pack
1.75
3.8
39.8
