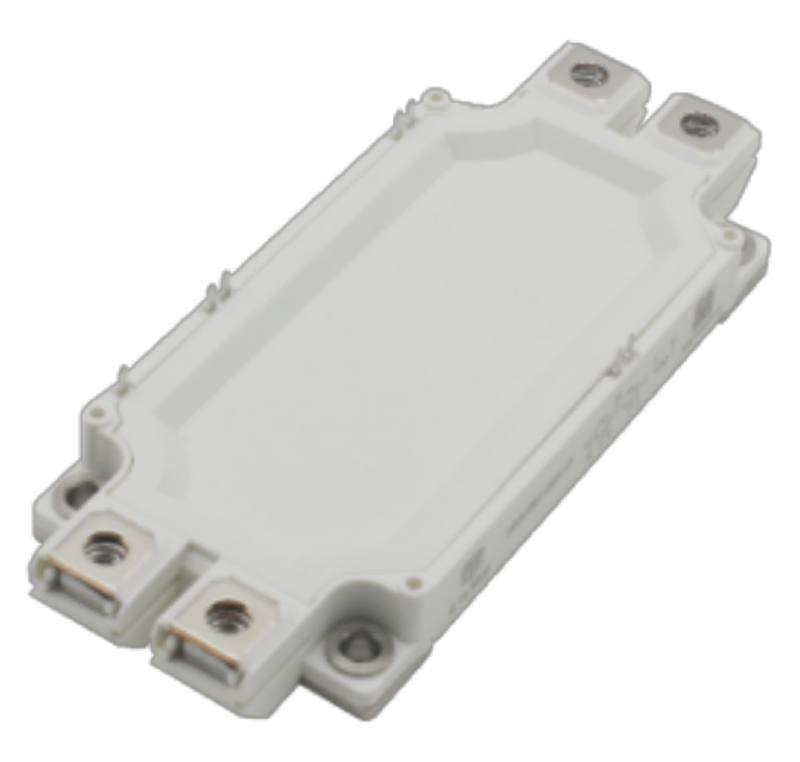

DriveED3
Features
A. Terminal ultrasonic welding-
B. Copper wire bonding
C. High-strength ceramic substrate-
D. High reliability module

Applications
A. Automotive applications
B. Motor drive
C. Wind turbines

Product Description


PackageProductVces(V)Ic(A)VCE(sat)(V)Configurationtypical value @Tj=25℃
VF(V)Eon(mJ)Eoff(mJ)

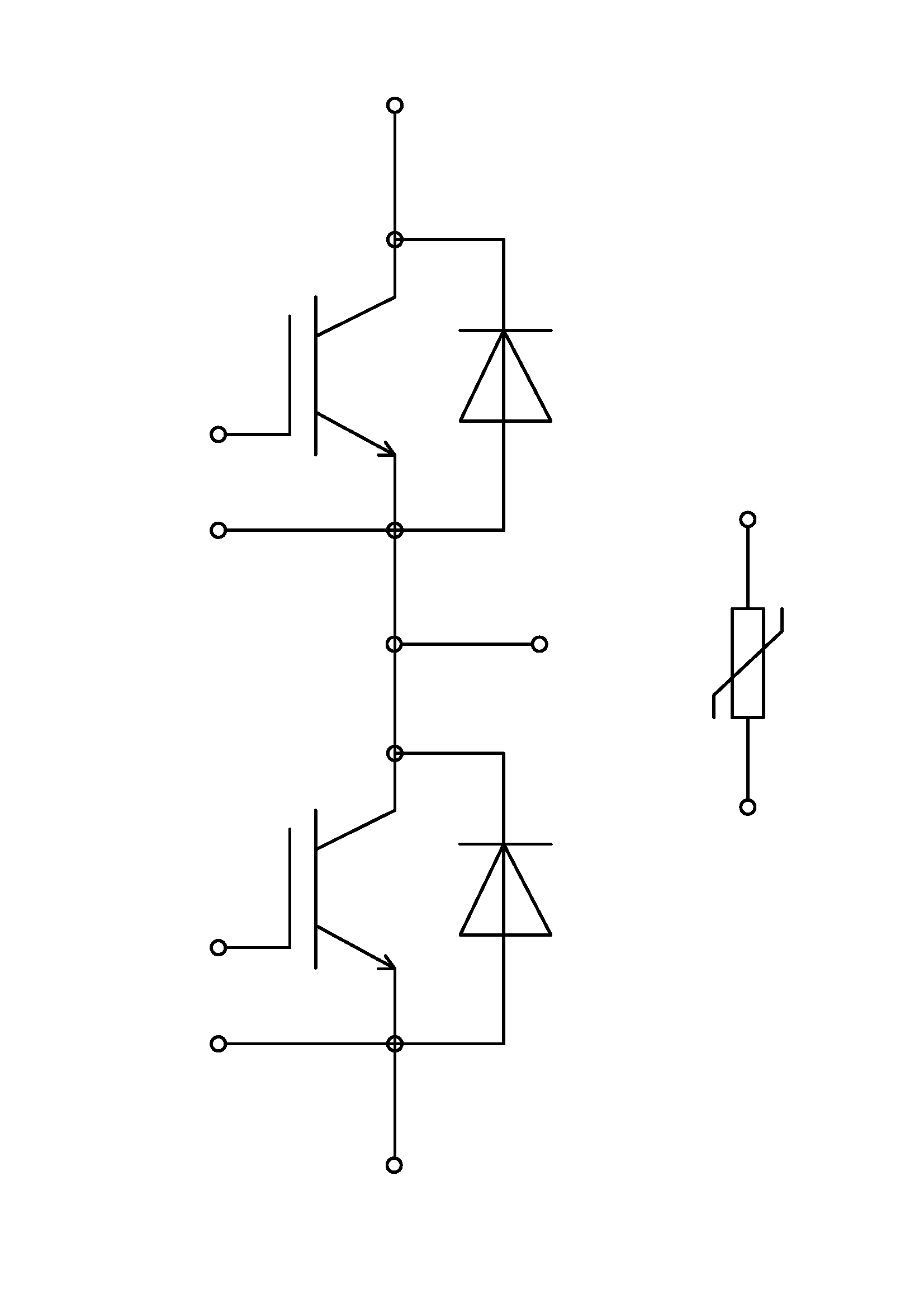

DriveED32E300M07A1P6503001.70Half Bridge1.555.316.5
2E450M07A1P6504501.70Half Bridge1.557.119.7
2E600M07A1P6506001.70Half Bridge1.5514.833.4
2E100M120A1P12001001.70Half Bridge1.904.37.3
2E150M120A1P12001501.70Half Bridge1.906.410.8
2E225M120A1P12002251.70Half Bridge1.907.915.3
2E300M120A1P12003001.70Half Bridge1.9010.429.0
2E450M120A1P12004501.70Half Bridge1.9012.842.4
2E600M120A1P12006001.70Half Bridge1.9030.278.4
2E800M120A1P12008001.90Half Bridge1.9049.096.8
2E300MF120A1P12003001.95Half Bridge1.70418.0
2E450MF120A1P12004501.95Half Bridge1.708.524
2E600MF120A1P12006001.95Half Bridge1.706.1536
2E450TA170A1P17004501.80Half Bridge2.80118129
2E600TA170A1P17006001.80Half Bridge2.80153155

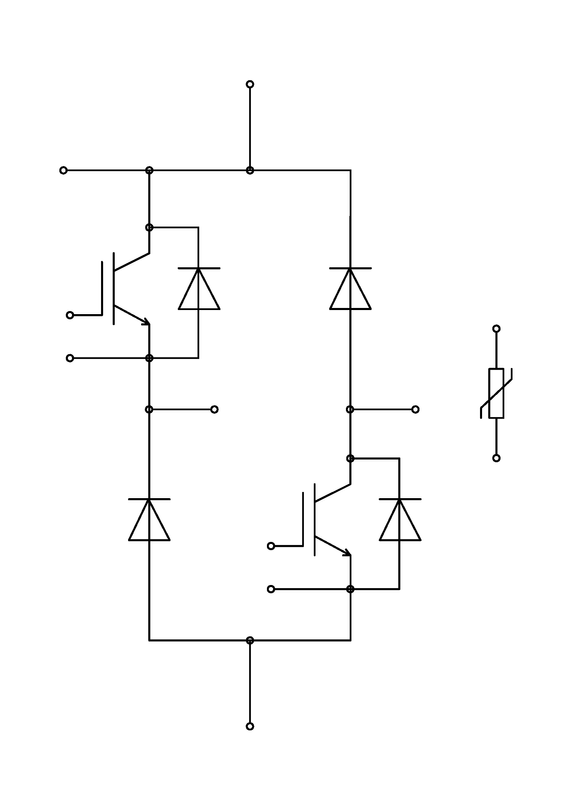

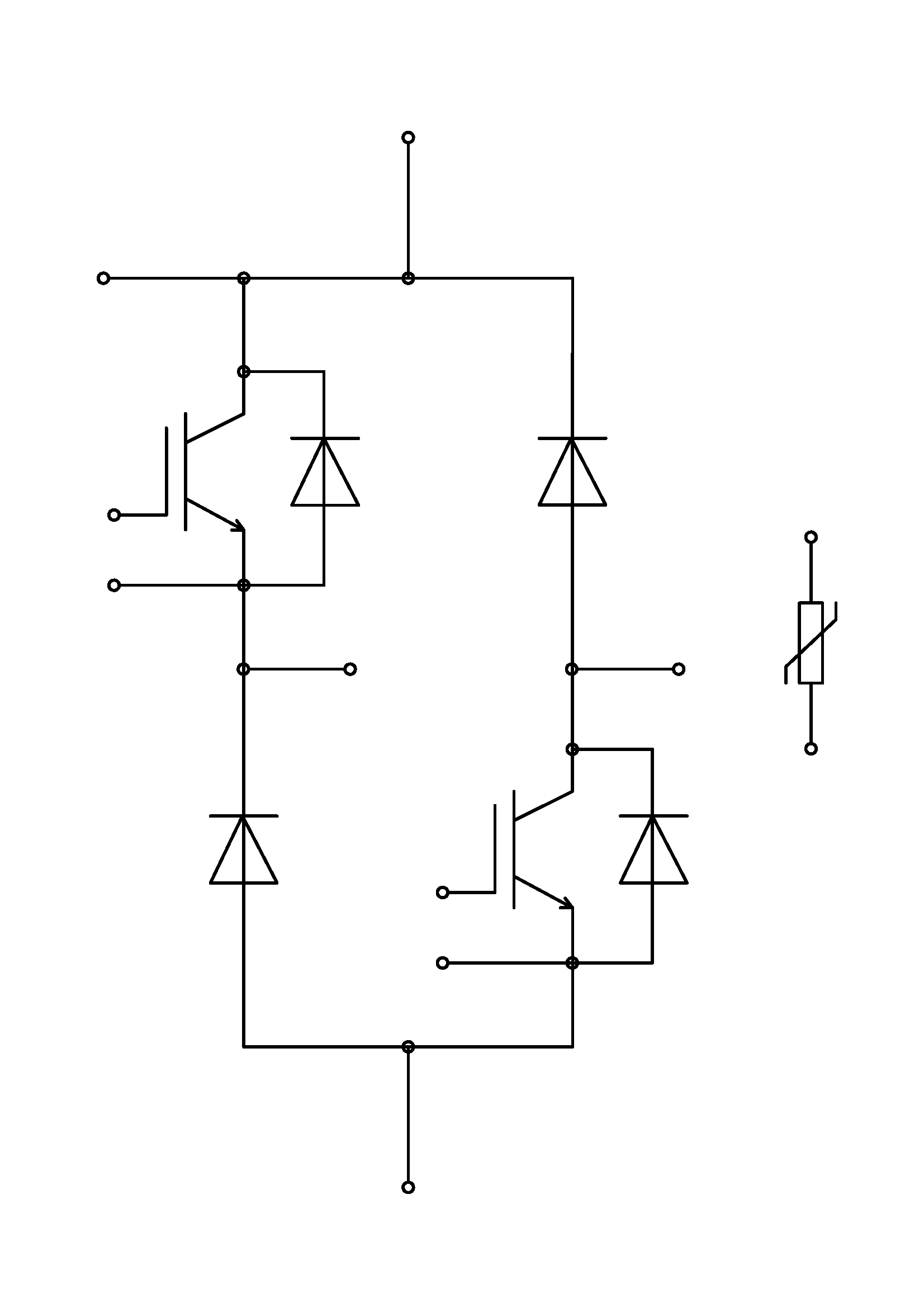

DriveED3CBE300M07A1P6503001.70Chopper1.555.316.5
CBE450M07A1P6504501.70Chopper1.557.119.7
CBE600M07A1P6506001.70Chopper1.5514.833.4
CBE300M120A1P12003001.70Chopper1.9010.429.0
CBE450M120A1P12004501.70Chopper1.9012.842.4
